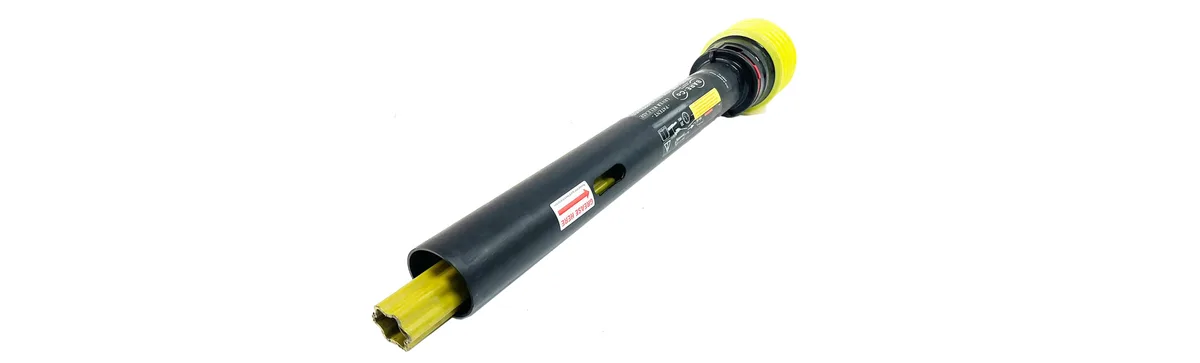

125 HP Wide Angle Half Shaft, Tractor End — 1 3/8" x 6 tractor end, 68"–107"
IH675130 · P675 series · Wide Angle Half Shaft, Tractor End
$1,875
This is one half of a driveline. A tractor end (inner drive tube) on its own will not drive the implement — you also need the matching implement end in the same P675 series. The options are listed below.
Specification
- Product family
- Wide Angle (C.V.) Shafts
- Series
- P675
- Tier
- Upgrade
- Position
- Tractor end (inner drive tube)
- End yoke
- 1 3/8" x 6 splines quick release
- Tractor spline
- 1 3/8" x 6
- Cross journal diameter
- 36/42 mm (1.42/1.65")
- Cross length
- 89/104 mm (3.50/4.09")
- Closed, cross to cross
- 54" (137 cm)
- Open, cross to cross
- 93" (236 cm)
- Closed length (collapsed)
- 68" (173 cm)
- Open length (extended)
- 107" (272 cm)
- Power at 540 rpm
- 125 hp
- Power at 1000 rpm
- 200 hp
- Decoded
- Wide angle half shaft, tractor end
Match the tractor, not the implement. The shaft’s rating must meet or exceed your tractor’s PTO horsepower. Undersize it and the driveline becomes the part that fails.
Check your PTO speed. This shaft is rated 125 hp at 540 rpm and 200 hp at 1000 rpm. Use the figure for the speed you actually run — they are not interchangeable.
Working it hard? Bare Co advise reducing the rated horsepower by 40% for severe conditions — shock loading, heavy or wet crop, stony ground.
Length
Closed is the shaft fully collapsed — its shortest. Open is fully extended — its longest. Your tractor and implement must sit inside that range at every point through the turn.
Cross to cross is measured between the centres of the two universal joints. Overall is the full length including the end yokes. Most machine specs quote cross to cross.
This shaft trims to length. Measure your machine at its shortest point — the shaft must not bottom out — then cut to suit. You can always take metal off; you cannot put it back.
COMPLETES THIS DRIVELINE
$875
$875
$875
$809
FITS THESE MACHINES
| Machine | Position | Tier |
|---|---|---|
| Case IH LBX331P/R/S | Tractor end | P675 upgrade |
| Case IH LBX332P/R/S | Tractor end | P675 upgrade |
| Case IH LBX421S/R | Tractor end | P675 upgrade |
| Case IH LBX422R/S | Tractor end | P675 upgrade |
| Case IH LBX431R | Tractor end | P675 upgrade |
| Case IH LBX432R/S | Tractor end | P675 upgrade |
| Case IH LBX431S | Tractor end | P675 upgrade |
| Case IH BB940AP/AR/AS/P/R/S | Tractor end | P675 upgrade |
| Case IH BB960S/R/AR/AS | Tractor end | P675 upgrade |
| Case IH 590 | Tractor end | P675 upgrade |
| Claas Quadrant 1150 | Tractor end | P675 upgrade |
| Claas Quadrant 2100 | Tractor end | P675 upgrade |
| Claas Quadrant 2200 | Tractor end | P675 upgrade |
| Claas Quadrant 3200 | Tractor end | P675 upgrade |
| Claas Quadrant 3300 | Tractor end | P675 upgrade |
| Claas Quadrant 3400 | Tractor end | P675 upgrade |
| Claas Big Pack 4X4 HX-XC | Tractor end | P675 upgrade |
| Massey Ferguson 2140 | Tractor end | P675 upgrade |
| Massey Ferguson 2160 | Tractor end | P675 upgrade |
| Massey Ferguson 2170 | Tractor end | P675 upgrade |
| Massey Ferguson 2170XD | Tractor end | P675 upgrade |
| Massey Ferguson 2190 | Tractor end | P675 upgrade |
| Massey Ferguson 185 | Tractor end | P675 upgrade |
| Massey Ferguson 186 | Tractor end | P675 upgrade |
| Massey Ferguson 187LB | Tractor end | P675 upgrade |
| Massey Ferguson 190LB | Tractor end | P675 upgrade |
| Massey Ferguson 2150 | Tractor end | P675 upgrade |
| Massey Ferguson 2240 | Tractor end | P675 upgrade |
| Massey Ferguson 2250 | Tractor end | P675 upgrade |
| Massey Ferguson 2260 | Tractor end | P675 upgrade |
| Massey Ferguson 2270 | Tractor end | P675 upgrade |
| Massey Ferguson 2270XD | Tractor end | P675 upgrade |
| Massey Ferguson 2290 | Tractor end | P675 upgrade |
| Krone Big Pack 12130 | Tractor end | P675 upgrade |
| Krone Big Pack 12130 XC | Tractor end | P675 upgrade |
| Krone Big Pack 4X4 | Tractor end | P675 upgrade |
| Krone Big Pack 4X4 HS | Tractor end | P675 upgrade |
| Krone Big Pack 4X4 HX-XC | Tractor end | P675 upgrade |
| New Holland 1270P | Tractor end | P675 upgrade |
| New Holland 1270 R-S | Tractor end | P675 upgrade |
| New Holland 1290P | Tractor end | P675 upgrade |
| New Holland 1290R-S | Tractor end | P675 upgrade |
| New Holland 9050P | Tractor end | P675 upgrade |
| New Holland 9050R | Tractor end | P675 upgrade |
| New Holland 9050S | Tractor end | P675 upgrade |
| New Holland 9060P | Tractor end | P675 upgrade |
| New Holland 9060S | Tractor end | P675 upgrade |
| New Holland 9070R | Tractor end | P675 upgrade |
| New Holland 9075S | Tractor end | P675 upgrade |
| New Holland 9080P | Tractor end | P675 upgrade |
| New Holland 9080R | Tractor end | P675 upgrade |
| New Holland 9080S | Tractor end | P675 upgrade |
